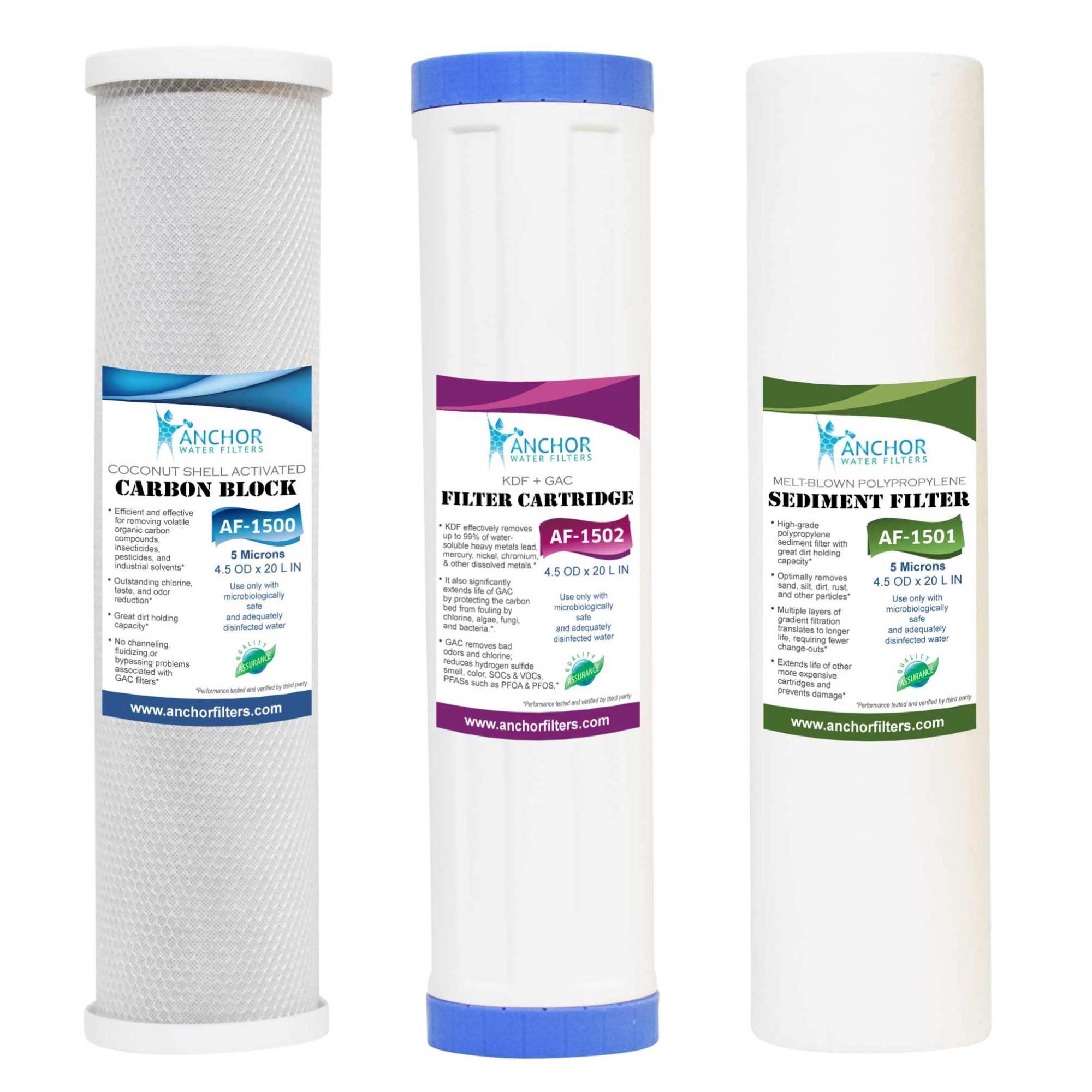

AF-156002 - Cartridge Set is replacement filters for Anchor 3-Stage Whole House Systems.

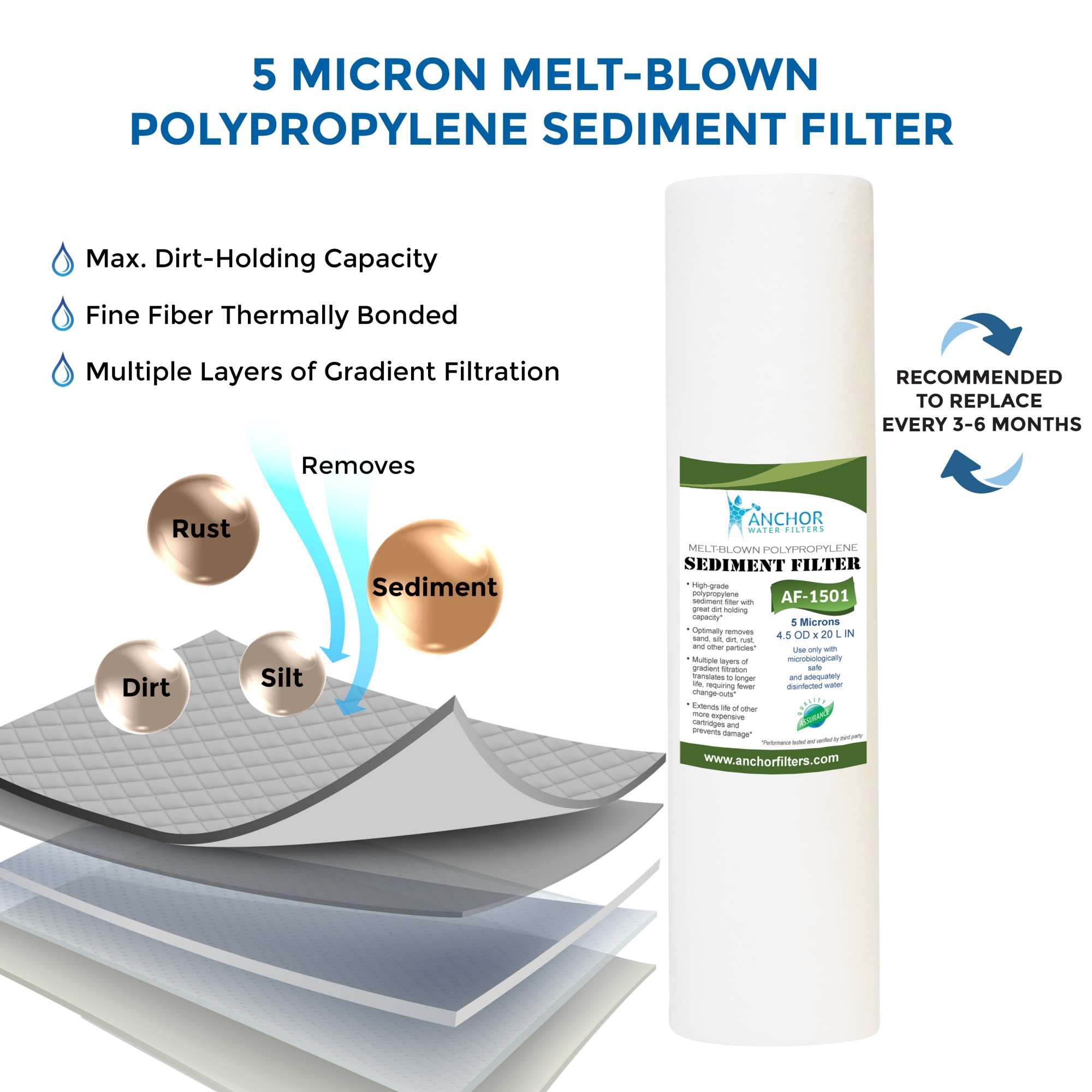

First Stage

The 20″ micron polypropylene sediment pre-filter to extract suspended materials such as sediment, rust, insects, and other particles down to 5 micron. This cartridge also extends life of other, more expensive cartridges and prevents damage

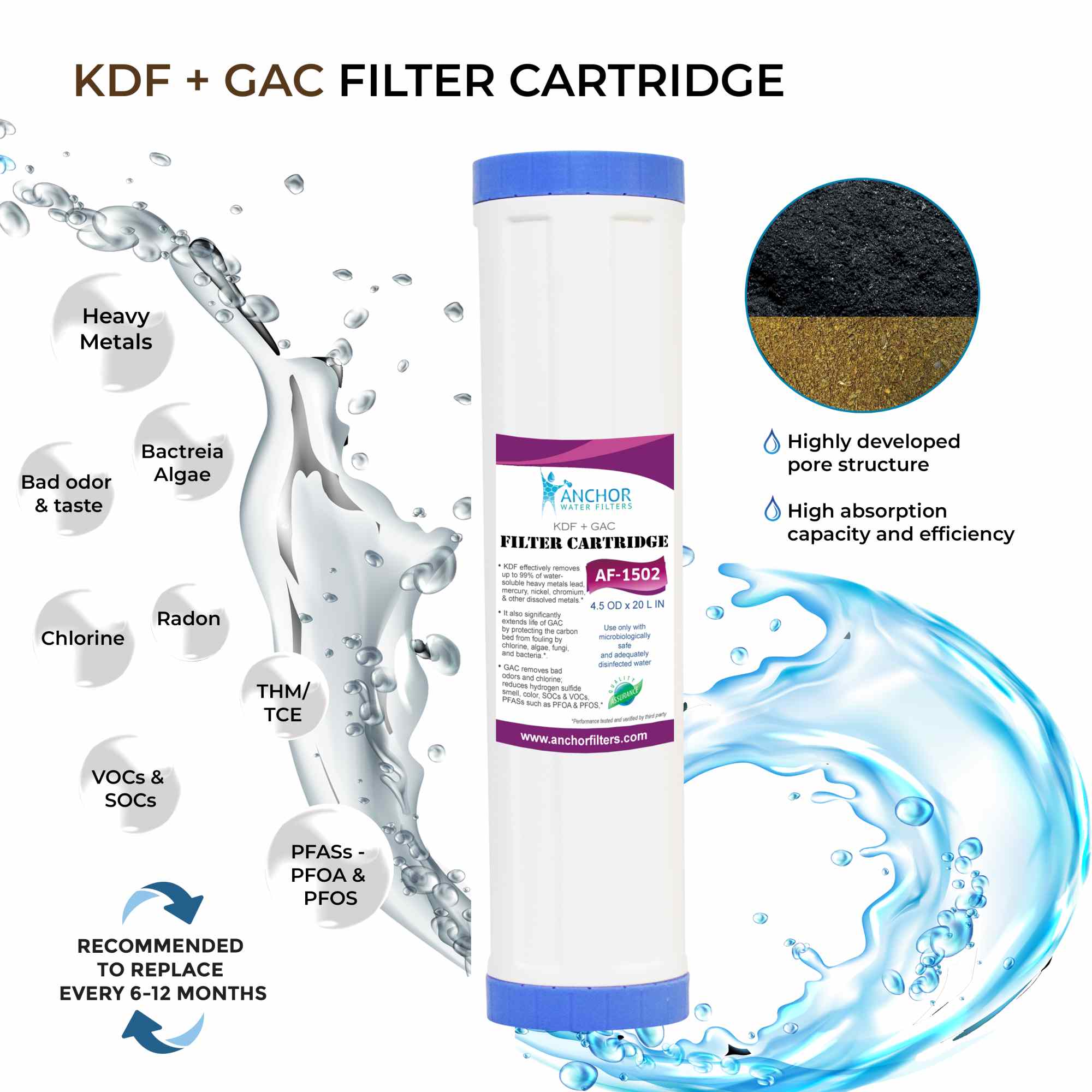

Second Stage

Multi-stage 20″ filter consists of one micron filter pad, 4lbs of KDF-55, Granular Activated Carbon (GAC), and another 1-micron pad. KDF removes heavy metals from water and significantly extends the life of granular activated carbon by protecting the carbon bed from fouling by bacterial growth. This filter cartridge effectively removes heavy metals such as Lead, Mercury, Iron, and more, and controls microorganisms. The filter removes unpleasant odors, Chlorine, Hydrogen sulfide smell from water.

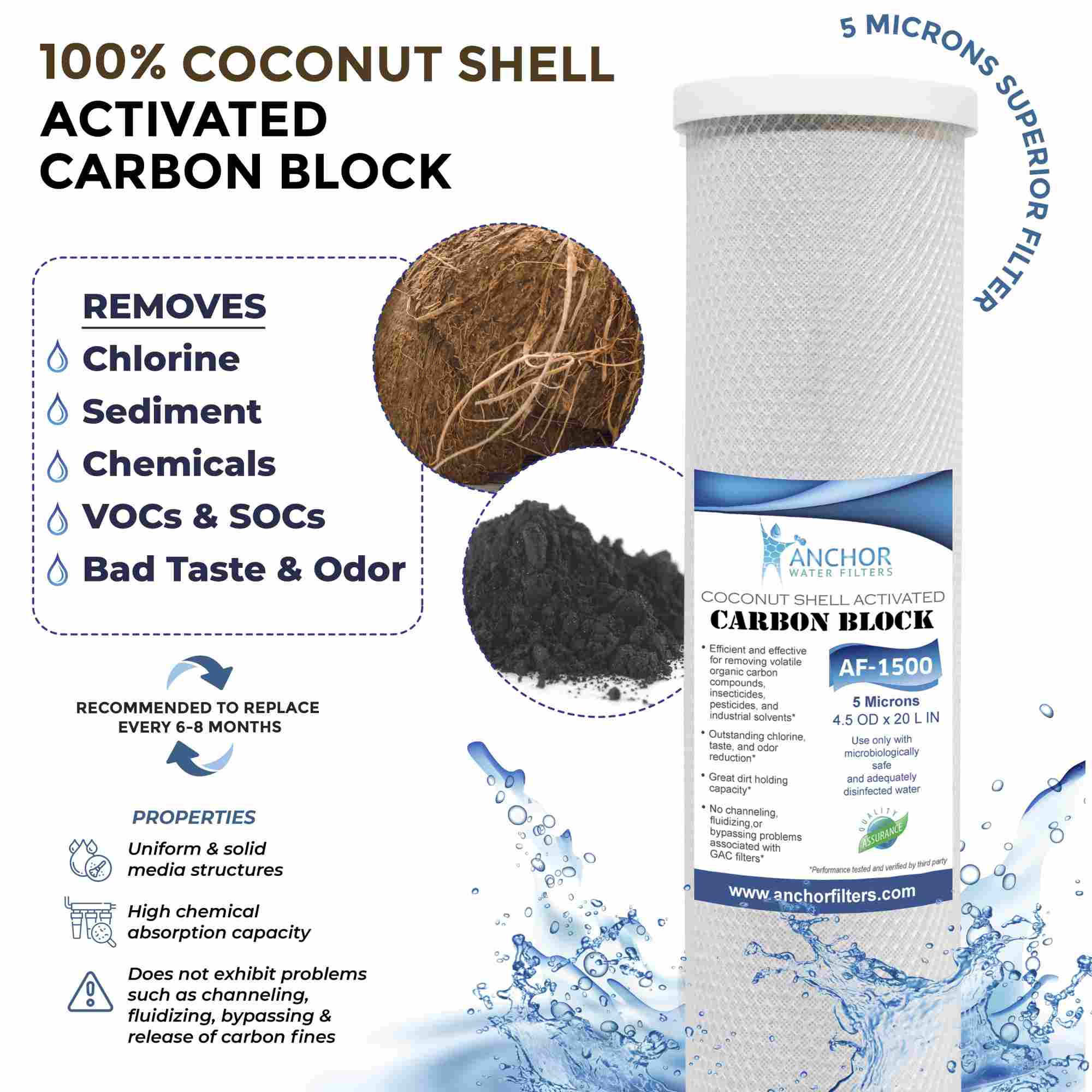

Third Stage

The 20″x 4.5″ solid carbon block cartridge to absorb heavy chlorine and its byproducts such as THM, and TCE. The carbon briquette filters out organic matter from water without release of carbon fines. This carbon block also removes volatile organic compounds (VOCs), insecticides, pesticides and industrial solvents.

All of the Anchor water filters feature National Safety Foundation (NSF) certified filter media.

Specifications

Product Height (in.)                                            20
Product Width (in.)                                             4.5
Fitting size (in.)                                                  1″
Maximum filtered water flow (gallons per min)  15
Maximum feed water pressure (psi)                  90
Minimum feed water pressure (psi)                   20
Maximum feed water temperature (F)               100
Minimum feed water temperature (F)                40
Product Weight (lb.)                                           13 lb
Filtration method                                                KDF, GAC, Carbon, Polypropylene

Compatible Models

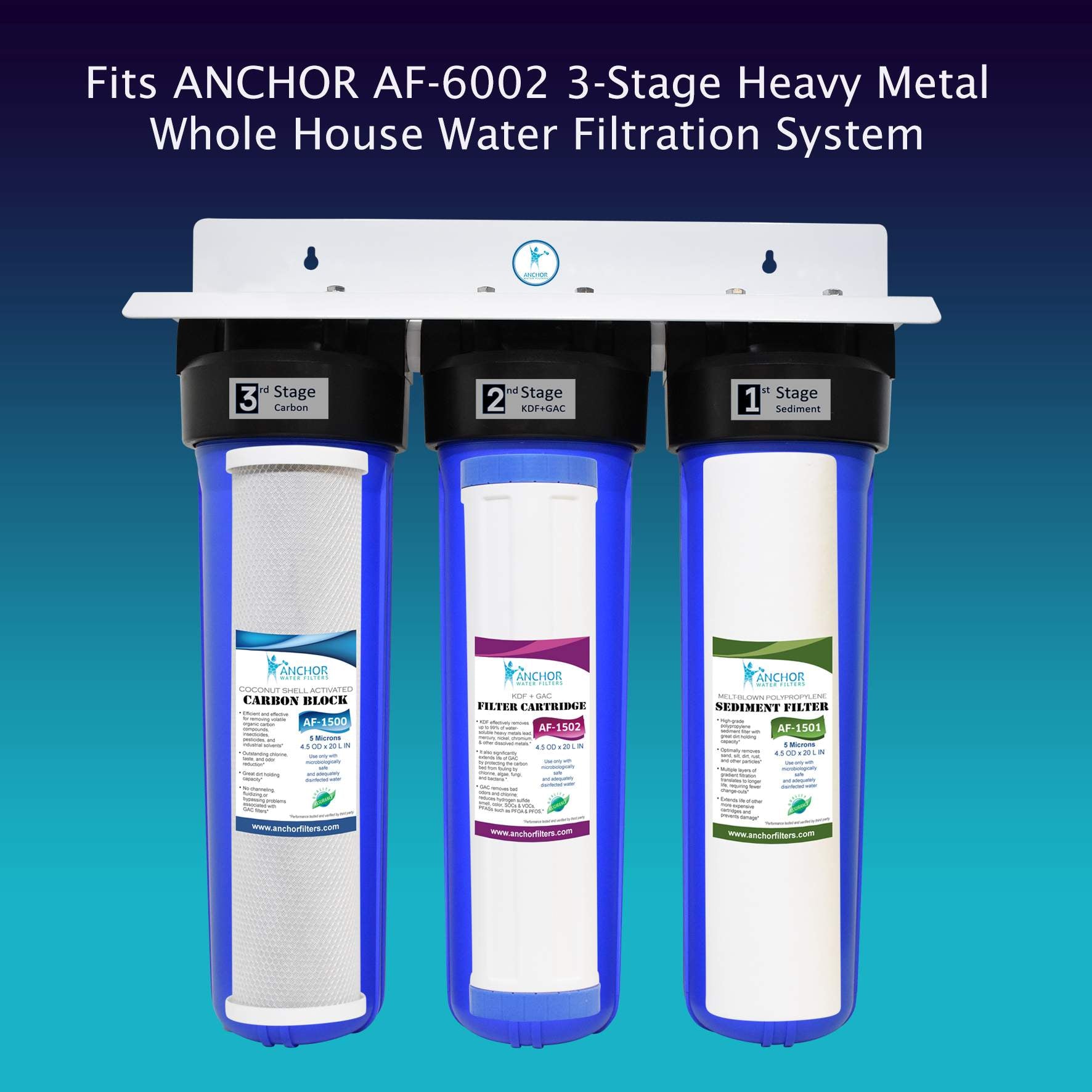

AF-6002 3-Stage Whole House Water Filter

Downloads

Download Instructions & Setup Guide
